Makita DLX2283TJ Combi Drill Set

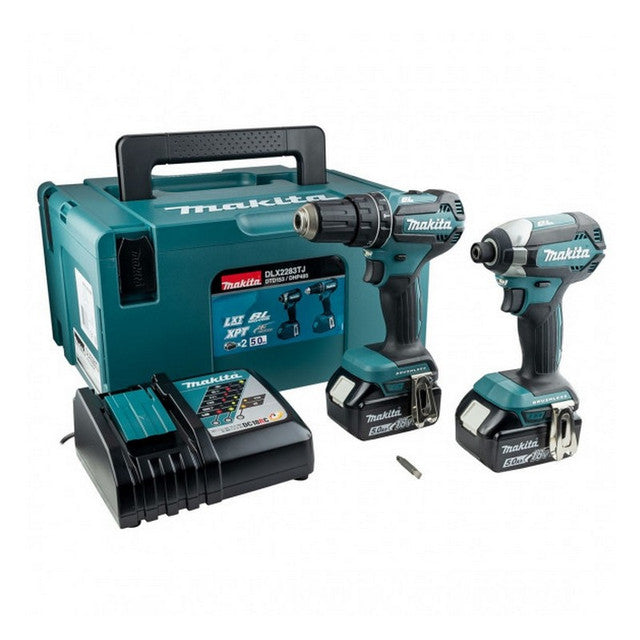

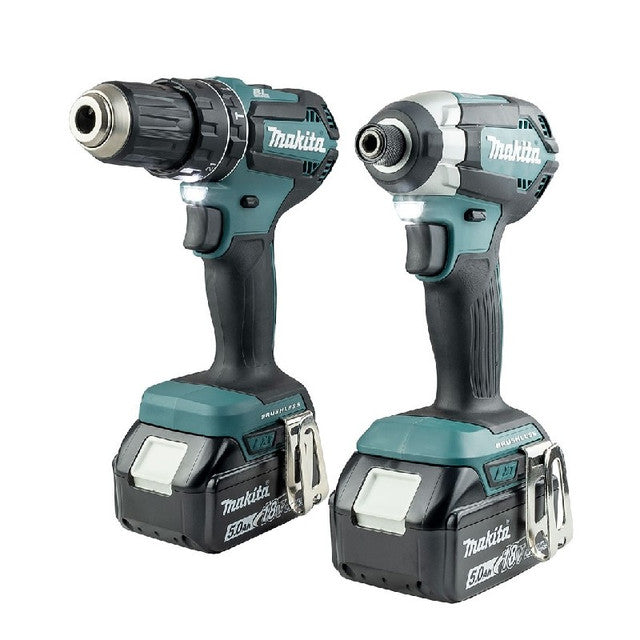

This Twin Pack brushless kit is made up of the Makita DHP485 Combi Drill and the Makita DTD153 Impact Driver. Also packed in the Makpac Type 3 Carry Case are 2x 5.0Ah superior run time lithium-ion batteries, a DC18RC quick charger, a pair of belt clips and a double ended driver bit.
Features & Specification:
DHP485 18V 2-Speed Combi Drill:
Extreme Protection Technology (XPT) offers maximum protection against dust.
Debris and liquids for optimal performance in extreme conditions.
Forward & Reverse
Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life.
21 clutch settings deliver up to 50Nm of torque.
All metal gears and gear housing for more efficient power transmission.
Ultra-compact design (only 182mm long).
Dual LED job lights with pre-glow and afterglow features.
Improved ergonomic soft rubber grip design for vibration absorption.
Comfortable operation features re-contoured rear grip portion and ribbed grip for improved hold
13mm Keyless chuck – for easy bit installation/ removal by one hand.
Battery Capacity: 18v Li-Ion
Impact Rate Low/High: 0-7,500/0-28,500 ipm
Max Drill Masonry: 13 mm
Max Drill Steel: 13 mm
Max Drill Wood: 38 mm
No Load Speed Low/High: 0-500/0-1,900 rpm
Blows per Minute Low/High: 0-7,500/0-28,500 bpm
Max Tightening Torque Hard/Soft: 50/27 Nm
Overall Length: 182 mm
Net Weight: 1.5-1.8 kg
Vibration Level: 8.0 m/s2
Noise Level: 82 dB(A)
Uncertainty (K): 1.5 m/s2
Work Mode: Drilling into Metal
Uncertainty (K): 1.5 m/s2
Sound Power Level (LWA) : 93 dB(A)
Uncertainty (K): 3 dB(A)
DTD153 18V Impact Driver:
Extreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
Compact design with an overall length of only 126mm.
One touch sliding chuck for easy bit installation and removal.
Brushless DC motor with high power to weight and size ratio.
Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications.
Battery protection system provides over-discharge.
Temperature and current protection for enhanced performance, battery cycle life and overall battery life.
LED job light with pre-glow.
Ergonomic soft rubber grip design for vibration absorption and comfortable operation.
Voltage: 18v
Max Torque: 170 Nm
Brake Type: Electric
LED Job Light: Yes / Pre-glow
Battery Capacity Indicator: No
Battery Compatibility: 18v Lithium-Ion (LXT)
Rotation: Forward & Reverse
Variable Speed Control Trigger: Yes
No Load Speed: 0-3400 rpm
Machine Screw Capacity: M4-M8
Standard Bolt Capacity: M5-M16
High Tensile Bolt Capacity: M5-M14
Coarse Thread Length Capacity: 22-125 mm
Max Impacts per Minute: 0-3600 ipm
Driving Shank: 1/4" Hex
Overall Length: 126 mm
Net Weight (with 1.5/2Ah Battery): 1.3 kg
Net Weight (with 3/4/5Ah Battery): 1.5 kg
Brushless Motor: Yes
Sound Pressure Level (LPA): 96 dB(A)
Sound Power Level (LWA): 107 dB(A)
Uncertainty (K): 3 dB(A)
Vibration Emission (Ah): 13 m/s2
Uncertainty (K): 1.5 m/s2
What is Included:
1x DHP485 Combi Drill
1x DHP485 Belt Clip
1x Double Ended Screwdriver Bit
1x DTD153 Impact Driver
1x DTD153 Belt Clip
2x BL1850 5.0 Ah Batteries
1x DC18RC Quick Charger
1x Makpac Connector Case Type 3 with Inlay
